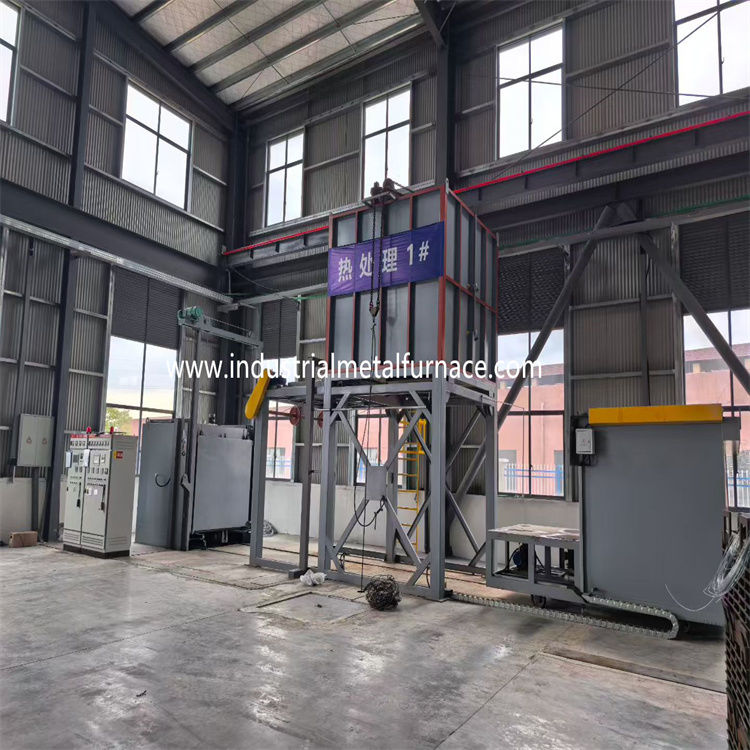

1.0x1.0x1.0m Aluminum Alloy T6 Fast Quenching Furnace Heat Treatment Furnace

High-Performance 1.0x1.0x1.0m Aluminum Alloy Quenching Furnace with Rapid Transfer System by WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD.

WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. introduces a dedicated Aluminum Alloy Quenching Furnace designed for the rapid solid solution and quenching treatment of aluminum alloy components. This periodic operation resistance furnace features an overhead loading system that ensures excellent thermal circulation and uniform temperature distribution, enabling high-quality quenching results critical for aluminum alloy heat treatment.

Engineered for efficiency, this furnace ensures that after heating and soaking, workpieces can be transferred from the furnace into the quenching water tank within 15 seconds. The core temperature control system utilizes PID zero-crossing triggered thyristors and a Japanese Shimaden SR13 programmable intelligent meter, paired with a 10.1-inch touch screen for precise process management, data logging, and over-temperature alarm protection. The table below outlines the key technical specifications of this robust system:

The furnace construction prioritizes durability and thermal efficiency, featuring a steel frame, 240mm thick aluminum silicate fiber insulation, and a 304 stainless steel air guide system. The heating elements are made of high-quality 0Cr25AL5 alloy resistance belts arranged around the chamber. A powerful 7.5KW hot air circulation fan with an imported NSK bearing ensures uniform furnace temperature, while an independent 80KW heating system maintains the quenching water tank at the desired temperature.

Comprehensive safety and automation are integral to the design, with interlocking controls that cut power to heating and fan systems when the door opens and restore power to the lifting mechanism. The system includes a double-speed winch for controlled lifting, a mobile quenching tank with electric travel, and a cylinder-actuated furnace door seal. WUXI WONDERY INDUSTRY EQUIPMENT CO., LTD. supplies a complete package, including the furnace, lifting device, control system, mobile tank, and technical drawings, offering a reliable aluminum solution heat treatment solution.
